《石油管道粉末內噴涂機》技術規格書
        Oil pipeline internal powder spraying machine" technical specification
項目名稱：石油管道粉末內噴涂機
Project name: Oil pipeline internal powder spraying machine
項目編號.：DH13C02
Project NO. DH13C02
供方：蘇州德力克斯自動化精機有限公司
Supplier: Delix (Suzhou) Automation Machine &Tool Co., Ltd
1. 項目描述Project description
1.1 簡要原理brief principle
a)石油管道環氧粉末內涂層噴涂工藝：工件表面預處理→預熱→粉末噴涂→涂層固化
Spraying coating of petroleum pipeline epoxy powder inner: surface pretreatment→ preheating, →
powder coating, →curing of coating

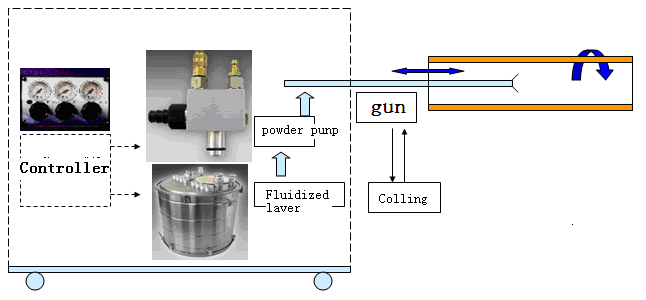

b)粉末噴涂原理示意圖Powder spraying principle schematic

1.2 設備實現方法Equipment principle
http://www.fnnssss.com.cn
石油管道粉末內噴涂機 Page 2 of 10
1.1.1 粉末在粉泵(文丘里喉管)作用下經噴槍在壓縮空氣作用高效噴射于預熱管道內壁，從而粉末熔化結合
在管件內表面上。
The powder high efficient jet in preheating pipe wall ，it is feeding via the powder pump (Venturi throat tune)
under the action of compressed air spray gun . then the power combine and melt in the pipe inner surface.
1.1.2 流化粉桶主要包括流化桶、氣室、微孔板、文丘里噴嘴、輸粉管等。氣室的作用是將經過凈化的壓
縮空氣，由集中狀態分散均壓，并均勻上升。
Powder fluid-bed including barrel, a gas chamber, a plate with micro hole, Venturi nozzle, the powder feeding
tube etc..
1.1.3 噴涂系統及噴槍在噴涂小車的帶動下行走。
Spraying system and spraying gun walking is driven by a dolly.
1.1.4 噴槍扶正器用于粉末噴射時在噴涂過程中與被噴涂管件的對中。
Spray gun for spraying powder centralizer in spraying process when spraying working.
1.1.5 冷水機及噴槍冷卻系統用于保證作業過程中的粉末作業溫度環境的穩定。
Cooling water machine and spray gun cooling system is use for the powder environment temperature stability
when operating in the process.
1.1.6 管道兩端設置于前、后粉末回收機。兩端采用袋式過濾器裝置作為粉末回收及環保除塵裝置。
Both ends of the pipeline configuration powder recovery machine. Both ends of the bag type filter device as
powder recovery and environmental protection dust removing device.
1.1.7 噴涂鋼管上下料及旋轉裝置：上下料裝置負責加熱后鋼管的接料和出料，噴涂時鋼管自轉，速度通
過調整驅動電機轉速調整。
The sprayed pipe feeding and rotating device: the pipe receiving and discharging system in charge for loading
and unloading the heating pile, spraying pipe rotation speed is adjustable.
1.1.8 控制系統用于協調各功能動作的實現。
Control system is used to realize the coordination function action.
1.1. 9 控制面板配有手動、自動、急停功能，并配有關功能指示燈。
Control panel with manual, automatic, emergency stop function, and with the relevant function indicator.

2.設備性能Equipment characteristic

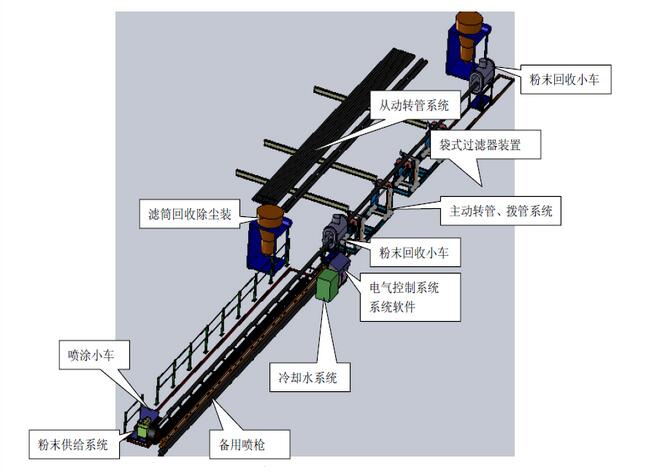

2.1 設備設備組成Equipment unit

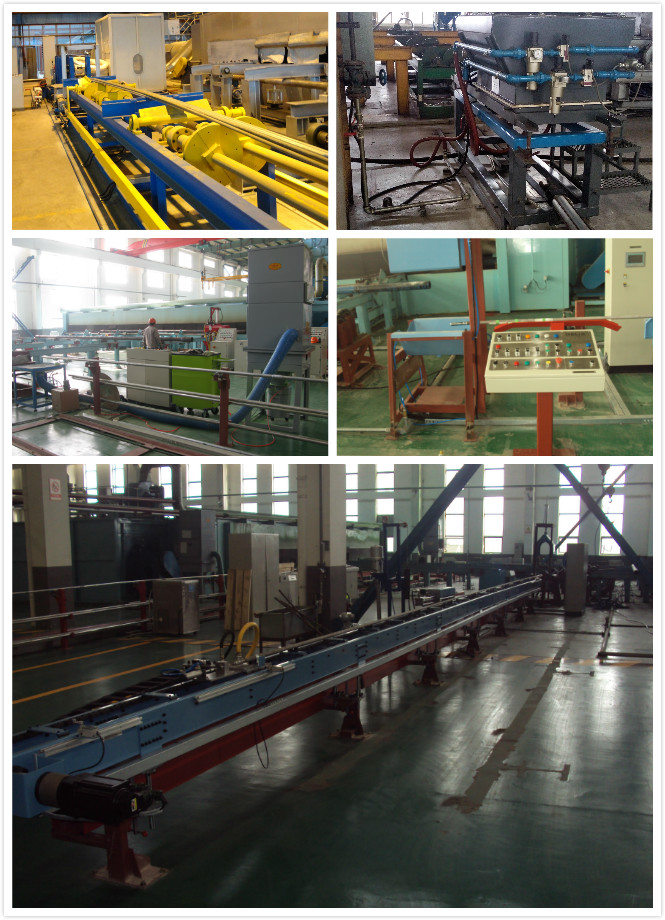

石油管道粉末內噴涂機Oil pipeline powder spraying machine
2.1.1 噴涂鋼管上下料及旋轉裝置：上下料裝置負責加熱后鋼管的接料和出料，噴涂時鋼管自轉，速度通
過變頻器調整。
The sprayed pipe feeding and rotating device
2.1.2 噴涂小車及供粉裝置：噴涂小車負責帶動噴槍前進和后退，噴涂小車前進時有多段速度，位移-速度
曲線自由設定。噴涂有多段速度，位移-速度曲線自由設定，確保涂層質量。粉泵將流化桶的粉末輸入到
噴槍中，然后加入稀釋空氣對粉末進行稀釋?zhuān)?jīng)過稀釋的粉末從噴槍前端噴到鋼管內壁，通過調節噴槍
的數量和粉泵的供氣壓力來調節粉量大小。
Dolly with spraying and powder supply device
2.1.3 粉末回收裝置Powder recovery device：鉆桿公母端配粉末收集裝置。母端采用濾筒回收除塵裝置，
公端采用袋式過濾器裝置作為粉末回收及環保除塵裝置。
Powder recovery device
2.1.4 噴槍水冷裝置：噴槍降溫裝置，避免噴槍過熱導致粉末結塊。冷卻水循環使用并降溫。
Spray gun cooling device
2.2 設備使用條件Conditions
2.3.1 工作電源Power supply：AC220&380V±5% 50Hz
2.3.2 配電功率Power：6.5kw
2.3.3 氣源壓力Compressed gas：0.6—1.0MPa

2.3.4 耗氣量Gas consumption：<1500L/min(過濾精度Filter precision≤40u)
2.3.5 占地空間Space：16,000mmx2,500mmx1,500mm
2.3.6 環境溫度Ambient temperature：-10~50℃(因溫度影響涂料噴涂性能不在本機性能保證范圍之內)

設備性能保證Performance and guarantee
3.1 技術指標Technical indexes
序號
No.
項目
Item
參數
Parameter
備注
Remark
3.1.1 涂層厚度
coating thickness
4－12 mil
（無級可調stepless adjustable）
3.2.2 噴槍行走速度
Gun walking speed
0.5－32 m/min
3.3.3 作業效率
Cycle time
每涂1 根總耗時約1.5～4 分鐘
about 1.5 to 4 minutes per spraying
3.3.4
管子規格
Pipe size
2_3/8″、2-7/8″、3_1/2″、4″、4-1/2″、5″
、5-1/2″、6″、6-1/2″（內徑IDφ47－φ300mm ）
3.3.5 適用管子長度
Pipe length
L=3～14.5m
3.3.6 噴涂質量標準
Spraying quality standard
《SY/T0544-2004（石油鉆桿內涂層技術條件）》
3.2 主要功能配置Configuration
3.3.1 粉末噴涂主機系統Powder spraying host system：
前回收倉系統 Before recycling system 1set
可移動式后回收倉系統Back movable recycling system 1 set
移動小車粉末供給噴涂系統Dolly with spraying and powder supply device 1set
轉管系統（含：噴涂工位用氣動擋管、翻管裝置）Pipe Rotating system (including: spraying station
pneumatic baffle pipe, tube inversion device) 1set
輔助系統：管尾工裝、槍桿支架、扶正器、托鏈、軌道等Auxiliary system: pipe finishing loading, the barrel
of a stent, centralizer, support chain track, etc. 1set
http://www.fnnssss.com.cn
石油管道粉末內噴涂機 Page 6 of 10
電控、氣控系統Electronic control, pneumatic control system 1set
冷卻水循環系統cooling water circulation system 1set
3.3.2 水冷噴槍8 套Water cooled lance 8 sets：φ16/φ19/φ25/φ32 各2 套
3.3.3 特別說明Special explanation：
a)噴涂小車多段位置、速度可自由設定。至少可設置4 段速度。Spraying dolly can set multi position and speed
freely.
b)配自循環水冷機。Matching cooling water circulation system
c)配自適應彈片鼠籠式扶正器。With adaptive shrapnel squirrel cage type centralizer
d)噴槍高度可調，采用輥輪式托架支撐。
e)離噴槍最近一處噴槍支撐，要求高度、前后可方便調節，配調節手輪。
f)適用噴涂鋼管長度：3～14.5m。
g) 母端采用濾筒回收除塵裝置，公端采用袋式過濾器裝置作為粉末回收及環保除塵裝置。
h)采用瓦格納wagner 或諾信Norson 品牌流化桶及粉泵。Using the Wagner Wagner or Nordson Norson brand
fluid-bed and powder pump.
i) PLC 采用西門子品牌。PLC uses Siemens brand.
4.交貨期delivery
60～75days

5. 賣方供貨范圍Scope of supplies from the supplier
5.1 供貨范圍說明:供方供貨范圍以完成需方項目需求構成整體設備為原則。除主體設備外，還包括功能
區界內所必要的管件、接頭、連接器、地腳螺栓等。
Explanatory remarks on the scope of supplies: The scope of supplies from the supplier takes it for
principle to structure an integral equipment to fulfill the functions demanded by the demanding party. In addition
to the main body equipment, the pipes, joints, connection fittings, ground bolts and so on that are necessary
within the functional boundaries are also included.
5.2 設計制造原則Design and manufacture principles
5.2.1 必須確保安全可靠、操作方便、滿足生產功能要求。
It is necessary to ensure safety-reliability and convenient operation, to satisfy the requirements of
http://www.fnnssss.com.cn
石油管道粉末內噴涂機 Page 7 of 10
production functions.
5.2.2 系統的設計按中國的有關標準或規范之規定執行。
The design and manufacture of the system shall be carried out in conformity to related standards or norms
of China.
5.2.3 模塊設計。
Module design.
6. 需方自理范圍Self-supplying scope of the demander party
6.1 設備安裝條件（含水、電、氣等廠房基礎條件）。
Equipment installing conditions and working conditions necessary for the petroleum pipe spraying (such as
hot cleaning, sand blasting, soot blowing, thread protecting and so on).
6.2 設備配電所需空氣開關、地線及到達設備控制柜所需的電路。
Air switches, grounding cable and circuits to the control cabinet of the equipment necessary for the power
distribution for the equipment.
6.3 裝置配氣所需分支開關、及到達裝置氣源接口所需的氣路。
Branch valves necessary for air distribution for equipment, and air lines to the air mouthpiece of the
equipment.
6.4 設計制造明細表中明確的需方自理事項。
Others Self-supplying in List of Design and Manufacture
7.技術文件Technical documents
7.1 賣方交付的范圍包括設備外形尺寸安裝圖、電路接線圖、氣路圖、操作和維修手冊、裝箱單、易損件
表、出廠合格證、保修單、備件清單。
In the scope of supplier party’s delivery are the equipment boundary dimension installation drawing, circuit
wiring drawing, Operation and Maintenance Manual, packing list, list of spare parts, list of quick-wear articles,
Ex-plant Quality Certificate and Warranty.
7.2 賣方提供的技術文件、技術說明及圖表等均以中文表達，并按照賣方國家現行標準和規范進行設計。
All the technical documents, technical explanation and graphics are expressed in the Chinese language, and
are designed in conformity to the current standards and norms of the State of the supplier party
http://www.fnnssss.com.cn
石油管道粉末內噴涂機 Page 8 of 10
8 項目驗收與培訓 Item inspection and training
8.1 項目設計驗收Design inspection
8.1.1 供方項目總體設計完成，通知需方進行項目設計驗收。
The supplier finish the whole design and notify the buyer of design inspection.
8.1.2 項目設計驗收主要內容：項目實現方法的具體工程方法及FMEA(潛在失效模式及后果分析)、占地
面積。
Main content of the item design inspection: material project method and FMEA、possessive area.
8.1.3 對提出問題和要求的要求進行設計整改、簽署項目設計驗收紀要。
Coordinate question and request, subscribe the summary of the inspection.
8.1.4 若自供方預驗收通知發出之日起7 天內，由于需方原因未進行設計驗收，項目應按設計驗收通過處
理。
If buyer do not process the inspection due to their cause, the item should be pass according to the design
within 7 days after sending notification of the design inspection
8.2 項目的預驗收Advance inspection
設備供方工廠內裝配調試完成后，通知需方到供方工廠進行預驗收。預驗收內容包括：
After finishing the equipment, the supplier notify the buyer to inspection in their factory.
Main content of the advance inspection:
8.2.1 是否滿足需方提供的工廠條件。
Whether satisfy the conditions by the buyer.
8.2.2 設備的試運行，各功能滿足要求，符合性驗收。
Test the equipment and check the function
8.2.3 對提出問題和要求的要求進行整改、簽署預驗收紀要。
Coordinate question and request, subscribe the summary of the advance inspection.
8.2.4 若自供方預驗收通知發出之日起15 天內，由于需方原因未進行預驗收，設備應按預終驗收通過處理。
If buyer does not process the advance inspection due to their cause, the equipment should be pass according
to the final inspection within 15 days after sending notification of the advance inspection.
8.3 項目的終驗收 item final inspection
8.3.1 設備到需方現場后，安裝就位所需起吊作業由需方負責，供方指導。
http://www.fnnssss.com.cn
石油管道粉末內噴涂機 Page 9 of 10
After the equipment arrives the buyer’s factory, the buyer is responsible for loading. The supplier guidance.
8.3.2 由賣方負責設備的預就位和安裝，需方協助，買方提供必要的工作條件及工作環境。
The supplier is responsible for setting and installation. the buyer offer the indispensable work condition and
environment.
8.3.3 在設備安裝和調整完成后，設備進行必要的空載運轉。
After installation, the equipment must be running without load.
8.3.4 按本技術協議制定的驗收規范進行驗收。
Inspection is according to this technical agreement.
8.3.5 對設備各項性能參數進行測試合格，設備穩定正常運行35 天內，正式簽署終驗收紀要。
Test the parameter of all capability. The equipment run
Normally within 35days.we will subscribe the summary of the final inspection formally.
8.3.6 若自設備貨到需方之日起一個月內，由于需方原因未能進行安裝，設備應按終驗收通過處理。
If buyer does not set up the equipment due to their cause, the equipment should be pass according to the
final inspection within one month after arriving the buyer.
8.4 培訓Training
8.4.1 為保證設備安裝、試車、性能考核、培訓能夠順利進行，賣方將負責派遣技術人員（以下稱“派遣
工程師”）赴設備現場提供技術指導和咨詢。
The supplier will send the engineer to locale for direction and consultation.
8.4.2 派遣工程師將代表賣方在設備安裝、試車、性能考核、培訓中提供技術咨詢和指導。
The engineer will deputize the supplier offer the technical direction and consultation.
9.質保期與售后服務Guarantee period and After-sale services
9.1 質保期：終驗收起12 個月。Guarantee period:
12 months warranty from the date of finally inspection
9.2 質量有限保證的范圍： Quality assuring area:
9.2.1 易損件、消耗品不在保修范圍內。
Wearing parts and expendable is out of warranty
9.2.2 人為因素、天災地變及由于以下原因造成的損壞均不予保修:a)保養不當或改動；b)未經供方提供
或支持的零配件；c）氣動產品未裝氣動三聯件；d）超出產品規范的操作；e）未經授權的改動或使用不
http://www.fnnssss.com.cn
石油管道粉末內噴涂機 Page 10 of 10
當。
Human factor、the act of god and the following is out of
Warranty:
1) No good maintains or change
2) parts without offering from the supplier
3) pneumatic production without pneumatic joint
4) nonstandard operation
5) nonstandard using or change without the permit
9.2.3 如產品在約定的保證期內出現供方保證說明書涵蓋的任何產品缺陷的問題，供方將自行決定對產
品進行維修或更改。
If the equipment has any problem of guaranteed specification within guarantee period, the supplier will
service or rejigger.
9.2.4 如遇上述狀況或超出保證期，將酌收工時費及材料費。
If the status is out of guarantee, we will charge the man-hour and material expenses.
9.3 在質保期內，服務24 小時響應，48 小時到用戶現場。質保期外提供技術服務。
In the guarantee period, answer the service 24hours,arrive the consumer locale 48hours.we still supply the
technical
service out of the guarantee period.
